CARMAN for Nokia

Carman was a project created on 2008 that is an on-board diagnostic analyzer for the internet tablet that lets you monitor and detect problems on your automobile by accessing the data stored on your car’s on-board computer, the same data that service technicians use.

My role on the project: Interaction design
Collaborators: Abraão Lucas (Visual design), Tamara Baia (Interaction design)
External collaborators: Anderson Schimuneck (Visual design), Nando Sperb (Visual design)
Platform: MeeGo
Mobile: n800, n810, n900

Using the built-in GPS receiver and N900 Bluetooth OBDII reader, Carman can read codes ODBII and vehicle information, such as wheel speed and engine load. Carman also allows you to analyze and plan the route, as well as to monitor the situation on a map of your friends. Carman - read on for information on the OBD2 protocol speed, rpm, oil pressure and a lot of different information and options.

The user can login using existing protocol account: Yahoo, MSN, Jabber and others. With the account the user can follow friends who are using Carman, see their routes if the GPS is on and check their RPM and Km/h. Follow some screenflows related to this feature, that I worked on.
1.0) Create account
The user is able to login using an existing account protocol or create a new one. After this the user can follow friends, that can share by GPS their location and car details.
2.0) Follow friend
After the account creation or login the user can follow friends, that can share by GPS their location and car details.
3.0) Delete account
The user can delete the account, he or she can do this during a buddie share or when is offline.
4.0) Carman  - Tuning theme by Anderson Schimuneck
 4.1) Carman  - Tuning theme by Anderson Schimuneck
4.2) Carman - Tuning theme by Anderson Schimuneck

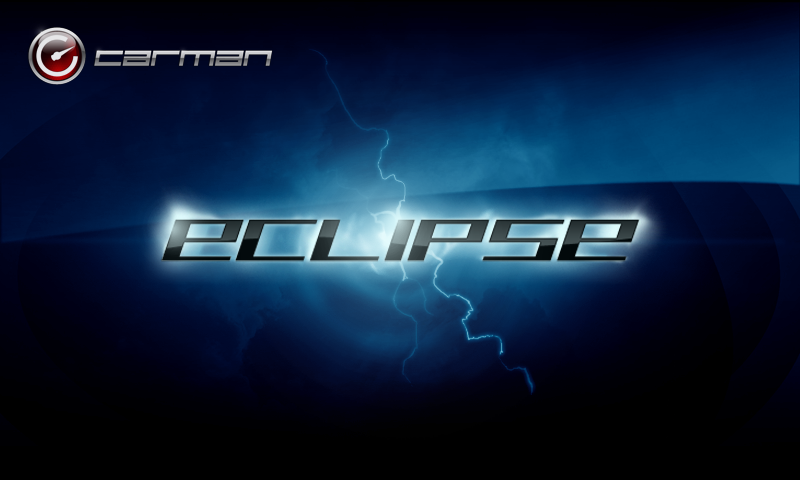

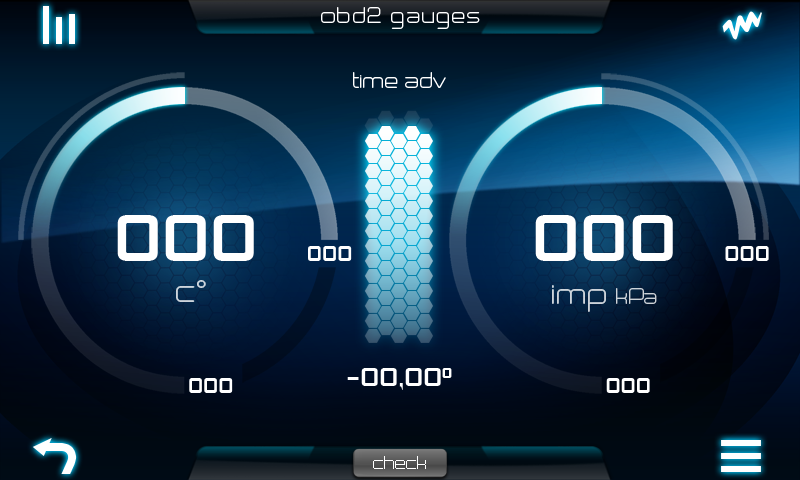

5.2) Carman - Eclipse theme by Abrão Lucas
5.2) Carman - Eclipse theme by Abrão Lucas
5.2) Carman - Eclipse theme by Abrão Lucas
6.0) Carman - Offroad theme by Nando Sperb

6.1) Carman - Offroad theme by Nando Sperb
6.2) Carman - Offroad theme by Nando Sperb
